8 Types of Car Suspensions

10 July, 2023
clock-bold
6 minutes read

Image 8 Types of Car Suspensions

The Double Wishbone suspension also has an independent design, so the turning angle and suspension movement will not affect the geometry angle, because the angle will remain constant.

The Double Wishbone suspension has drawbacks due to the fairly large space it requires. On top of that, when you want to replace a shock breaker or shock absorber, the disassembly process takes a long time.

This suspension is fairly easy to get damaged in its parts, such as broken ball joint at the bottom or top, long tie rod, and end tier rod. To avoid various damage to the car, you can do spooring regularly.

Multi-Link Suspension

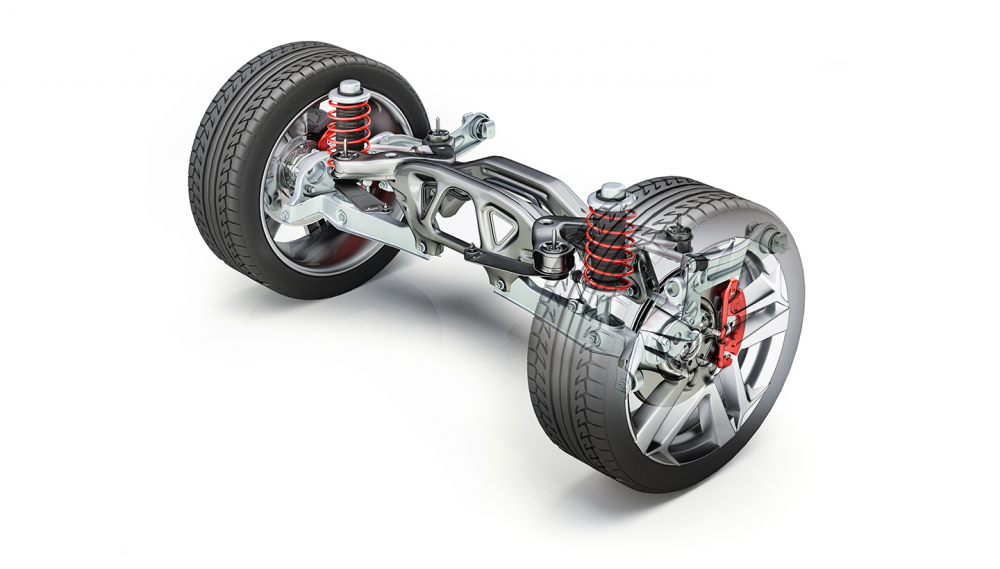

Suspensi Multi Link 1000x569

Multi-Link is a suspension developed by Double Wishbone and Multi-Link into a suspension that has a fairly complicated construction design because it has separate parts that are held together by joints.

This suspension also has component ends that pivot on two sides of the arm. Construction is made by manipulating the direction of the force that will be received by the wheel.

Multi-Link is a type of suspension that has quality grip and with this suspension, controlling the car becomes easier. The Multi-Link suspension also has many variations.

If this suspension is damaged, then the replacement process takes a long time and the spare parts are still rare, so the price is relatively more expensive than other suspensions.

Rigid Axle Suspension

Suspensi Axle Rigid

Rigid Axle suspension is usually placed at the rear of the car. The main feature of this suspension is its wheels on the rear left and right. The two wheels are connected into one axle which is commonly referred to as the axle.

The rigid axle suspension has 2 models at once, namely the Axle Rigid model which is equipped with leaf springs, and the Axle Rigid model which is equipped with a coil spring or often referred to as a spring.

This suspension has fairly good quality and can be applied in various types of cars. It is fairly simple because it can work with just one solid piece and is equipped with 2 springs.

The axle rigid is also considered a strong suspension, so it can support large loads stably, making it suitable for various types of large cars.

Suspension can help dampen the vibrations or shocks that occur when you are on a road that is uneven or tends to be bumpy. With a good quality suspension car, you can stay seated without any disruption.

The suspension is not only useful to help reduce vibrations when the car is driving but can make handling safer and let the car can run stably on the road.

With its very significant use, of course, the suspension is a must-have component in a car and it must get extra care.

Now, there are many types of cars around the world and this makes a variety of suspension types available. Even the use of suspensions in each car brand is always different, due to a large number of quality suspensions.

Differentiating the type of suspension in each car brand is certainly a way to balance the type of car. At least several types of suspension are widely popular and used in cars produced nowadays.

Macpherson Suspension

Suspensi Macpherson

Macpherson is a suspension whose name is taken from its inventor, Earle Macpherson. Lots of cars around the world use Macpherson suspension.

Many automotive manufacturers like this suspension, because it has an affordable price and also has fairly simple components.

The Macpherson suspension has an upright shape and is supported by shock absorbers which are used as the center point of the corner caster in the car. This suspension is also very easy to obtain because it's distributed widely.

The disadvantage of Macpherson's suspension is that it is less able to receive loads and the tilt angle always changes when the car is turned or turns, this makes the tires less able to grip the road asphalt properly.

Double Wishbone Suspension

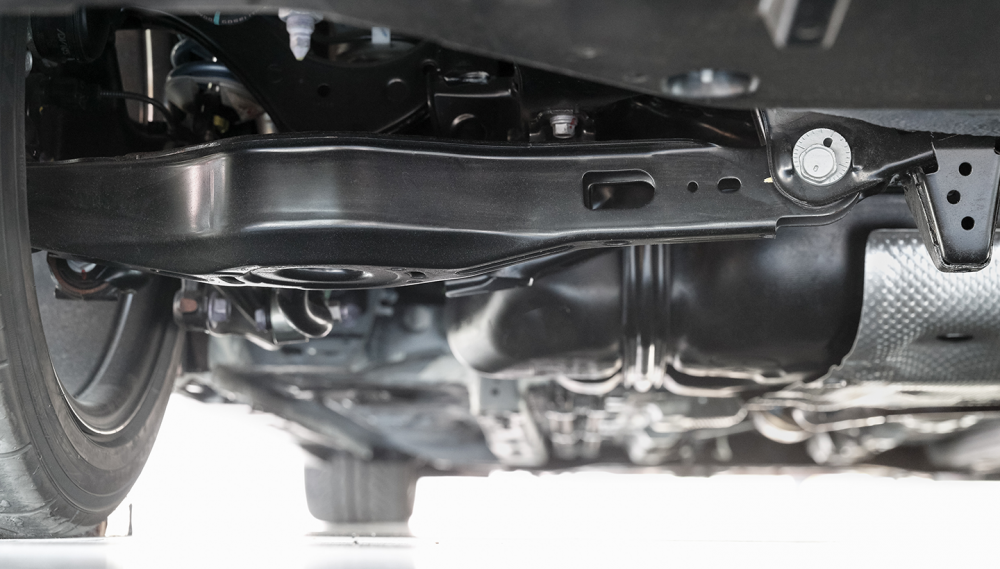

Suspensi Double Whisbone

Double Wishbone is a type of suspension that has 2 arms that support the suspension system, namely the upper and lower arms. With this suspension, the car can run stably.

Independent Suspension

Suspensi Independen

Independent suspension is a specially designed suspension because the right and left wheels at the rear are not connected directly but instead by axle joints

If the rear wheel steps on a hole, of course, the car will not rock and this is because only the left suspension moves. Independent suspension is indeed widely used in luxury cars.

The independent suspension has a more complex construction and the axle movements are mutually independent. This suspension is also equipped with two flexible joints. This type of suspension is still fairly expensive, so its use is mostly in luxurious cars.

You can also feel the comfort of the Independent Suspension when driving the Wuling Cortez CT Type S. This family car from Wuling offers comfort through Independent Suspension on the rear wheels. Of course, not only drivers but passengers can also feel comfortable sitting at the back seat of Wuling Cortez CT City Type S.

Rigid suspension - Leaf Spring

Suspensi Rigid – Leafspring

Rigid - Leafspring is one type of suspension that is widely applied in cars circulating in Indonesia and is mostly used in commercial type cars or old type cars. This suspension is usually used at the rear of the car because this suspension is stiff.

This suspension has a fairly simple and simple construction. This type of suspension usually consists of an Axle Housing that is intentionally tied using a U-Bolt already attached to the frame. Cars that use this suspension usually have a fairly high level of resistance.

Trailing Arm Suspension

Suspensi Trailing Arm

Trailing Arm is a type of suspension whose instructions are almost the same as 3 Links - Rigid, even though the working system is very different. The way it works is also different from the 3 Links - Rigid or other types of suspension.

The Trailing Arm suspension has connected from the right side to the left. This type of suspension is usually placed at the back of the car.

Air Suspension

Suspensi Udara atau Air Suspension

Air Suspension is one of the developed suspensions that has excellent performance, so this type of suspension is widely used in luxury cars.

Even in luxury cars, the car's suspension can be adjusted using a computer and this allows the adjustment to be done properly.

The drawback of this suspension is that it has a very complicated construction when compared to other types of suspension. Not only that, but this suspension also has a very expensive price.

Those are the eight types of car suspensions that exist today. Hopefully, this information can add to your automotive knowledge!
